1 of 28

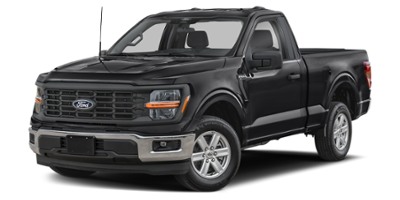

XL 2WD Reg Cab 6.5' Box

$49,955 MSRP

Gasoline

Rear-Wheel Drive

400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

5.0 L/302

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm

Torque

410 ft-lb @ 4250 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,082 kg

Wt Distributing Hitch - Max Tongue Wt.

408 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,992 kg

Fifth Wheel Hitch - Max Tongue Wt.

998 kg

Maximum Trailering Capacity

4,082 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

87.1 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

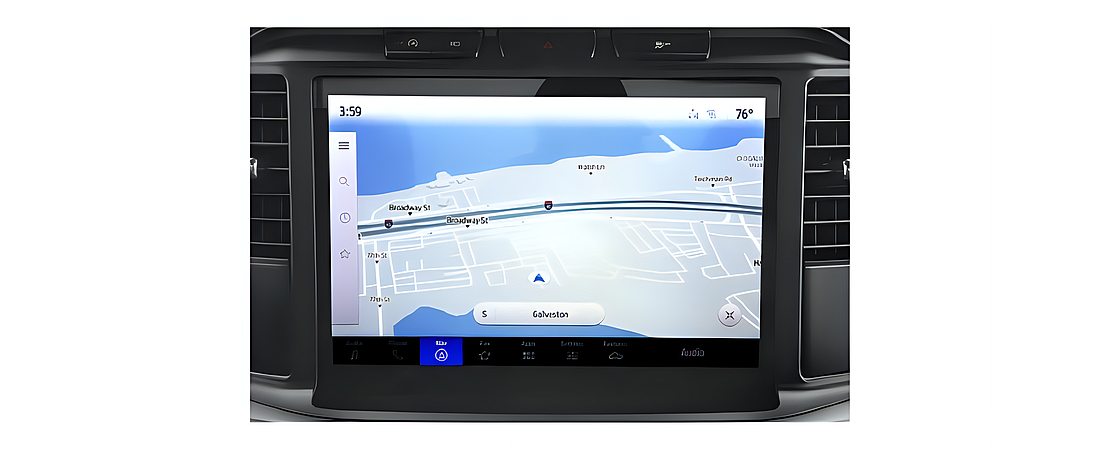

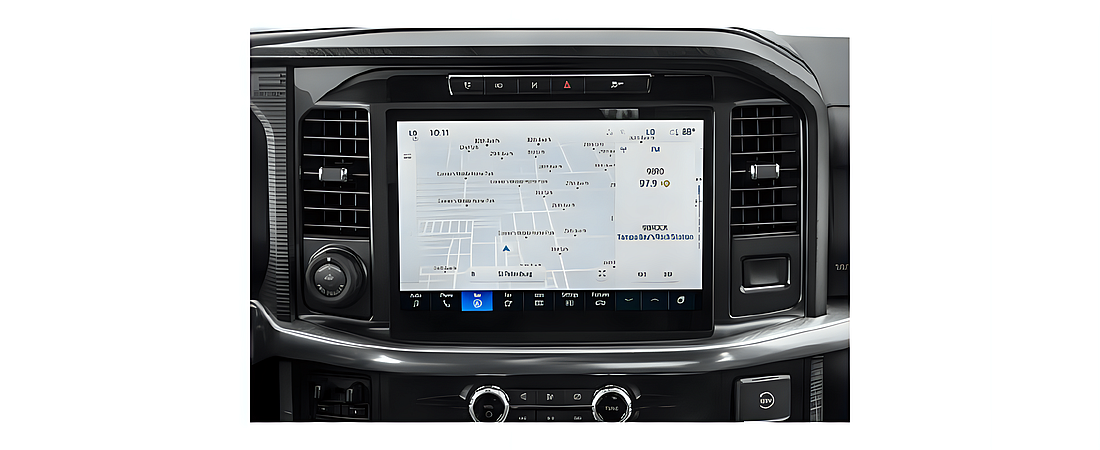

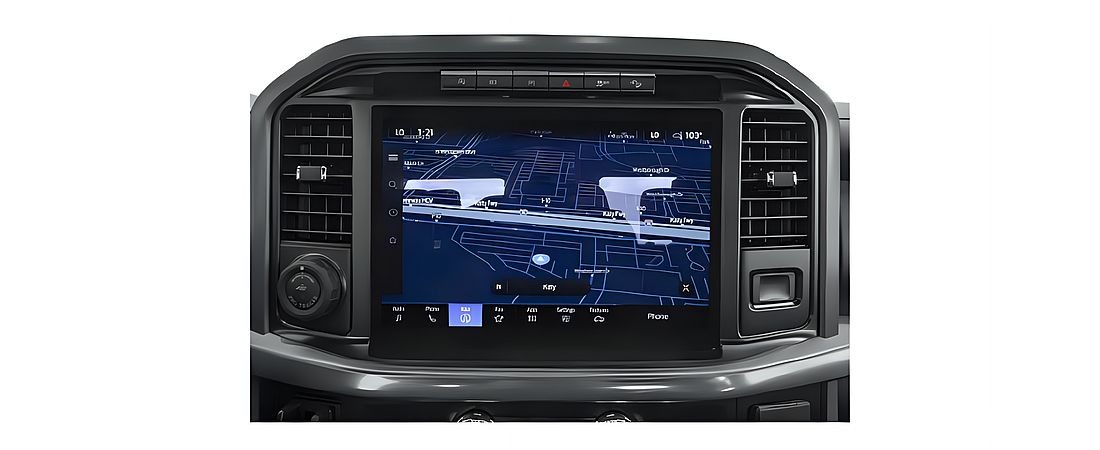

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,099 mm

Length, Overall

5,311 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,920 mm

Min Ground Clearance

N/A

Base Curb Weight

1,992 kg

Front Tire Size

LT265/70SR17 P245/70SR17

Rear Tire Size

LT265/70SR17 P245/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

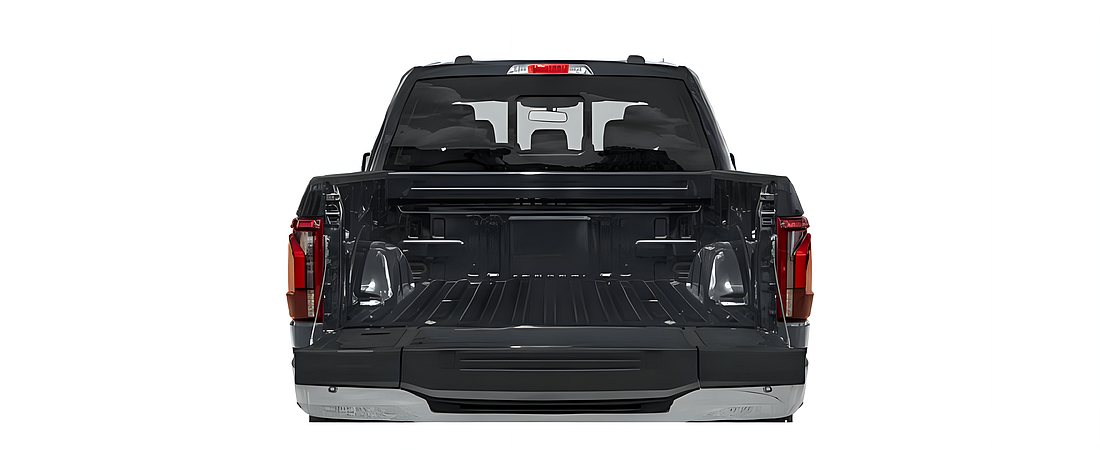

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

2 of 28

XL 2WD Reg Cab 8' Box

$49,955 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,357 - 4,944 kg

Wt Distributing Hitch - Max Tongue Wt.

336 - 494 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,311 - 4,944 kg

Fifth Wheel Hitch - Max Tongue Wt.

828 - 1,236 kg

Maximum Trailering Capacity

3,357 - 4,944 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,581 mm

Length, Overall

5,784 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,910 mm

Min Ground Clearance

N/A

Base Curb Weight

1,994 - 2,089 kg

Front Tire Size

LT265/70SR17 P245/70SR17

Rear Tire Size

LT265/70SR17 P245/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

3 of 28

XL 4WD Reg Cab 6.5' Box

$54,455 MSRP

Gasoline

Four-Wheel Drive

400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

5.0 L/302

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm

Torque

410 ft-lb @ 4250 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,629 kg

Wt Distributing Hitch - Max Tongue Wt.

363 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,629 kg

Fifth Wheel Hitch - Max Tongue Wt.

907 kg

Maximum Trailering Capacity

3,629 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

87.1 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,099 mm

Length, Overall

5,311 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,956 mm

Min Ground Clearance

N/A

Base Curb Weight

2,111 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

4 of 28

XL 4WD Reg Cab 8' Box

$54,455 MSRP

Gasoline

Four-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 4,990 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 499 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,357 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

839 - 1,168 kg

Maximum Trailering Capacity

3,402 - 4,990 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,581 mm

Length, Overall

5,784 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,956 mm

Min Ground Clearance

N/A

Base Curb Weight

2,122 - 2,208 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

5 of 28

XL 2WD SuperCab 6.5' Box

$55,850 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 5,761 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 576 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,402 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

850 - 1,168 kg

Maximum Trailering Capacity

3,402 - 5,761 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,679 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,918 mm

Min Ground Clearance

N/A

Base Curb Weight

2,119 - 2,170 kg

Front Tire Size

LT265/70SR17 P245/70SR17

Rear Tire Size

LT265/70SR17 P245/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

6 of 28

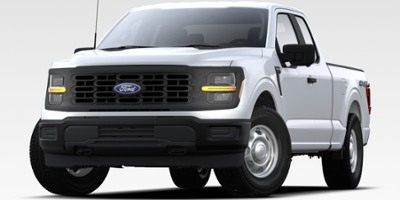

STX 2WD SuperCab 6.5' Box

$58,260 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 5,761 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 576 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,402 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

850 - 1,168 kg

Maximum Trailering Capacity

3,402 - 5,761 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Optional

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,679 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,918 mm

Min Ground Clearance

N/A

Base Curb Weight

2,119 - 2,128 kg

Front Tire Size

P275/60SR20

Rear Tire Size

P275/60SR20

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

7 of 28

XL 2WD SuperCrew 5.5' Box

$59,030 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,447 - 5,806 kg

Wt Distributing Hitch - Max Tongue Wt.

345 - 581 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,357 - 5,262 kg

Fifth Wheel Hitch - Max Tongue Wt.

839 - 1,315 kg

Maximum Trailering Capacity

3,447 - 5,806 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,920 mm

Min Ground Clearance

N/A

Base Curb Weight

2,126 - 2,220 kg

Front Tire Size

LT265/70SR17 P245/70SR17

Rear Tire Size

LT265/70SR17 P245/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

8 of 28

XL 4WD SuperCab 6.5' Box

$60,350 MSRP

Gasoline

Four-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,357 - 5,534 kg

Wt Distributing Hitch - Max Tongue Wt.

336 - 553 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,311 - 4,536 kg

Fifth Wheel Hitch - Max Tongue Wt.

828 - 1,134 kg

Maximum Trailering Capacity

3,357 - 5,534 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,679 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,220 - 2,285 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

9 of 28

XLT 2WD SuperCab 6.5' Box

$60,895 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 5,761 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 576 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,402 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

850 - 1,168 kg

Maximum Trailering Capacity

3,402 - 5,761 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,679 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,918 mm

Min Ground Clearance

N/A

Base Curb Weight

2,119 - 2,170 kg

Front Tire Size

LT265/70SR18 P265/60SR18

Rear Tire Size

LT265/70SR18 P265/60SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

10 of 28

STX 2WD SuperCrew 5.5' Box

$61,440 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,447 - 5,761 kg

Wt Distributing Hitch - Max Tongue Wt.

345 - 576 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,357 - 5,262 kg

Fifth Wheel Hitch - Max Tongue Wt.

839 - 1,315 kg

Maximum Trailering Capacity

3,447 - 5,761 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Optional

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,920 mm

Min Ground Clearance

N/A

Base Curb Weight

2,126 - 2,186 kg

Front Tire Size

P275/60SR20

Rear Tire Size

P275/60SR20

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

11 of 28

XL 4WD SuperCrew 5.5' Box

$62,180 MSRP

Gasoline

Four-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 5,942 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 594 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,266 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

816 - 1,168 kg

Maximum Trailering Capacity

3,402 - 5,942 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,241 - 2,389 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

12 of 28

XL Hybrid 4WD SuperCrew 5.5' Box

$62,180 MSRP

Hybrid

Four-Wheel Drive

430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Gas/Electric V-6

Displacement

3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm

Torque

570 ft-lb @ 3000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,899 - 5,080 kg

Wt Distributing Hitch - Max Tongue Wt.

490 - 508 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,221 kg

Fifth Wheel Hitch - Max Tongue Wt.

805 kg

Maximum Trailering Capacity

4,899 - 5,080 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

HEV Electronic 10-Speed Automatic

Fuel

Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,533 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

13 of 28

STX 4WD SuperCab 6.5' Box

$62,760 MSRP

Gasoline

Four-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,357 - 5,534 kg

Wt Distributing Hitch - Max Tongue Wt.

336 - 553 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,311 - 4,536 kg

Fifth Wheel Hitch - Max Tongue Wt.

828 - 1,134 kg

Maximum Trailering Capacity

3,357 - 5,534 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Optional

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,679 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,220 - 2,244 kg

Front Tire Size

P275/60SR20

Rear Tire Size

P275/60SR20

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

14 of 28

XLT 2WD SuperCrew 5.5' Box

$64,075 MSRP

Gasoline

Rear-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,447 - 5,806 kg

Wt Distributing Hitch - Max Tongue Wt.

345 - 581 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,357 - 5,262 kg

Fifth Wheel Hitch - Max Tongue Wt.

839 - 1,315 kg

Maximum Trailering Capacity

3,447 - 5,806 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Included

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,920 mm

Min Ground Clearance

N/A

Base Curb Weight

2,126 - 2,220 kg

Front Tire Size

LT265/70SR18 P275/60SR20 P265/60SR18

Rear Tire Size

LT265/70SR18 P275/60SR20 P265/60SR18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

15 of 28

STX 4WD SuperCrew 5.5' Box

$64,590 MSRP

Gasoline

Four-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 5,942 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 594 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,266 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

816 - 1,168 kg

Maximum Trailering Capacity

3,402 - 5,942 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Optional

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,241 - 2,389 kg

Front Tire Size

LT265/70SR18 P275/60SR20

Rear Tire Size

LT265/70SR18 P275/60SR20

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

16 of 28

XLT 4WD SuperCab 6.5' Box

$65,395 MSRP

Gasoline

Four-Wheel Drive

325 - 400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,357 - 5,534 kg

Wt Distributing Hitch - Max Tongue Wt.

336 - 553 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,311 - 4,536 kg

Fifth Wheel Hitch - Max Tongue Wt.

828 - 1,134 kg

Maximum Trailering Capacity

3,357 - 5,534 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,679 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,220 - 2,285 kg

Front Tire Size

LT265/70SR18 P275/65SR18

Rear Tire Size

LT265/70SR18 P275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

17 of 28

XL Hybrid 4WD SuperCrew 6.5' Box

$65,955 MSRP

Hybrid

Four-Wheel Drive

430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Gas/Electric V-6

Displacement

3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm

Torque

570 ft-lb @ 3000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,899 - 4,990 kg

Wt Distributing Hitch - Max Tongue Wt.

490 - 499 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,175 kg

Fifth Wheel Hitch - Max Tongue Wt.

794 kg

Maximum Trailering Capacity

4,899 - 4,990 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

HEV Electronic 10-Speed Automatic

Fuel

Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,988 mm

Length, Overall

6,185 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,971 mm

Min Ground Clearance

N/A

Base Curb Weight

2,544 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

18 of 28

XL 4WD SuperCrew 6.5' Box

$66,255 MSRP

Gasoline

Four-Wheel Drive

400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Regular Unleaded V-6 Regular Unleaded V-8

Displacement

3.5 L/213 5.0 L/302

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm

Torque

500 ft-lb @ 3100 rpm 410 ft-lb @ 4250 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,173 - 6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

417 - 612 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,765 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

941 - 1,168 kg

Maximum Trailering Capacity

4,173 - 6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Not Available

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Optional

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,988 mm

Length, Overall

6,185 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,971 mm

Min Ground Clearance

N/A

Base Curb Weight

2,323 - 2,333 kg

Front Tire Size

LT265/70SR17 P265/70SR17

Rear Tire Size

LT265/70SR17 P265/70SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

19 of 28

XLT 4WD SuperCrew 5.5' Box

$67,225 MSRP

Gasoline, Hybrid

Four-Wheel Drive

325 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213 5.0 L/302 2.7 L/164

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm 430 hp @ 6000 rpm 325 hp @ 5500 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm 570 ft-lb @ 3000 rpm 400 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,402 - 5,942 kg

Wt Distributing Hitch - Max Tongue Wt.

340 - 594 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,221 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

805 - 1,168 kg

Maximum Trailering Capacity

3,402 - 5,942 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Included

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,241 - 2,533 kg

Front Tire Size

LT265/70SR18 P275/60SR20 P275/65SR18

Rear Tire Size

LT265/70SR18 P275/60SR20 P275/65SR18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

20 of 28

XLT 4WD SuperCrew 6.5' Box

$71,300 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Regular Unleaded V-6 Twin Turbo Gas/Electric V-6 Regular Unleaded V-8

Displacement

3.5 L/213 5.0 L/302

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

500 ft-lb @ 3100 rpm 570 ft-lb @ 3000 rpm 410 ft-lb @ 4250 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,173 - 6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

417 - 612 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,175 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

794 - 1,168 kg

Maximum Trailering Capacity

4,173 - 6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Included

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,988 mm

Length, Overall

6,185 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,971 mm

Min Ground Clearance

N/A

Base Curb Weight

2,323 - 2,544 kg

Front Tire Size

LT265/70SR18 P275/60SR20 P275/65SR18

Rear Tire Size

LT265/70SR18 P275/60SR20 P275/65SR18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

21 of 28

Tremor 4WD SuperCrew 5.5' Box

$75,980 MSRP

Gasoline

Four-Wheel Drive

400 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

5.0 L/302 3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

400 hp @ 6000 rpm

Torque

410 ft-lb @ 4250 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,536 - 5,942 kg

Wt Distributing Hitch - Max Tongue Wt.

454 - 594 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,583 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

896 - 1,168 kg

Maximum Trailering Capacity

4,536 - 5,942 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

2,014 mm

Min Ground Clearance

N/A

Base Curb Weight

2,386 - 2,463 kg

Front Tire Size

P275/70SR18

Rear Tire Size

P275/70SR18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

22 of 28

LARIAT 4WD SuperCrew 5.5' Box

$80,495 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

5.0 L/302 3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

410 ft-lb @ 4250 rpm 570 ft-lb @ 3000 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,218 - 5,942 kg

Wt Distributing Hitch - Max Tongue Wt.

422 - 594 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,221 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

805 - 1,168 kg

Maximum Trailering Capacity

4,218 - 5,942 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Included

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,312 - 2,533 kg

Front Tire Size

P275/50HR22 P275/60SR20

Rear Tire Size

P275/50HR22 P275/60SR20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

23 of 28

LARIAT 4WD SuperCrew 6.5' Box

$80,895 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

5.0 L/302 3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

410 ft-lb @ 4250 rpm 570 ft-lb @ 3000 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,173 - 6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

417 - 612 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,175 - 4,672 kg

Fifth Wheel Hitch - Max Tongue Wt.

794 - 1,168 kg

Maximum Trailering Capacity

4,173 - 6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Included

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,988 mm

Length, Overall

6,185 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,971 mm

Min Ground Clearance

N/A

Base Curb Weight

2,333 - 2,544 kg

Front Tire Size

P275/50HR22 P275/60SR20

Rear Tire Size

P275/50HR22 P275/60SR20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

24 of 28

King Ranch 4WD SuperCrew 5.5' Box

$92,790 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

570 ft-lb @ 3000 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,717 - 4,899 kg

Wt Distributing Hitch - Max Tongue Wt.

472 - 490 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,221 - 3,674 kg

Fifth Wheel Hitch - Max Tongue Wt.

805 - 919 kg

Maximum Trailering Capacity

4,717 - 4,899 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,312 - 2,533 kg

Front Tire Size

P275/50HR22 P275/60SR20

Rear Tire Size

P275/50HR22 P275/60SR20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

25 of 28

King Ranch 4WD SuperCrew 6.5' Box

$93,190 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

570 ft-lb @ 3000 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,899 kg

Wt Distributing Hitch - Max Tongue Wt.

490 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,175 - 3,765 kg

Fifth Wheel Hitch - Max Tongue Wt.

794 - 941 kg

Maximum Trailering Capacity

4,899 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,988 mm

Length, Overall

6,185 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,971 mm

Min Ground Clearance

N/A

Base Curb Weight

2,333 - 2,544 kg

Front Tire Size

P275/50HR22 P275/60SR20

Rear Tire Size

P275/50HR22 P275/60SR20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

26 of 28

Platinum 4WD SuperCrew 5.5' Box

$101,590 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

570 ft-lb @ 3000 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,717 - 4,899 kg

Wt Distributing Hitch - Max Tongue Wt.

472 - 490 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,221 - 3,674 kg

Fifth Wheel Hitch - Max Tongue Wt.

805 - 919 kg

Maximum Trailering Capacity

4,717 - 4,899 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Not Available

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Included

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,885 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,961 mm

Min Ground Clearance

N/A

Base Curb Weight

2,312 - 2,533 kg

Front Tire Size

P275/50HR22 P275/60SR20

Rear Tire Size

P275/50HR22 P275/60SR20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

27 of 28

Platinum 4WD SuperCrew 6.5' Box

$101,990 MSRP

Gasoline, Hybrid

Four-Wheel Drive

400 - 430 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Twin Turbo Gas/Electric V-6 Twin Turbo Regular Unleaded V-6

Displacement

3.5 L/213

Fuel System

Port/Direct Injection

Horsepower

430 hp @ 6000 rpm 400 hp @ 6000 rpm

Torque

570 ft-lb @ 3000 rpm 500 ft-lb @ 3100 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

4,899 kg

Wt Distributing Hitch - Max Tongue Wt.

490 kg

Fifth Wheel Hitch - Max Trailer Wt.

3,175 - 3,765 kg

Fifth Wheel Hitch - Max Tongue Wt.

794 - 941 kg

Maximum Trailering Capacity

4,899 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift w/progressive range select and selectable drive modes: normal, ECO, sport, tow/haul, slippery, deep snow/sand and mud/rut

Fuel

Gasoline Hybrid

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

115.8 - 136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Not Available

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Included

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Included

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,676 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,988 mm

Length, Overall

6,185 mm

Width, Max w/o mirrors

2,029 mm

Height, Overall

1,971 mm

Min Ground Clearance

N/A

Base Curb Weight

2,333 - 2,544 kg

Front Tire Size

P275/60SR20

Rear Tire Size

P275/60SR20

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

28 of 28

Raptor 4WD SuperCrew 5.5' Box

$106,975 MSRP

Gasoline

Four-Wheel Drive

450 - 720 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Supercharger Premium Unleaded V-8 Twin Turbo Regular Unleaded V-6

Displacement

5.2 L/315 3.5 L/213

Fuel System

Sequential MPI Port/Direct Injection

Horsepower

720 hp @ 6650 rpm 450 hp @ 5850 rpm

Torque

640 ft-lb @ 4300 rpm 510 ft-lb @ 3500 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

3,719 - 3,946 kg

Wt Distributing Hitch - Max Tongue Wt.

372 - 395 kg

Fifth Wheel Hitch - Max Trailer Wt.

N/A

Fifth Wheel Hitch - Max Tongue Wt.

N/A

Maximum Trailering Capacity

3,719 - 3,946 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

Electronic 10-Speed Automatic -inc: SelectShift, paddle shifters and terrain management modes: normal, sport, tow-haul, slippery, rock crawl, off-road and baja mode

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

136.3 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Included

Cross-Traffic Alert

Not Available

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Included

Heads-Up Display

Included

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Included

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Included

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Included

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,692 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,908 mm

Width, Max w/o mirrors

2,027 - 2,050 mm

Height, Overall

2,027 - 2,050 mm

Min Ground Clearance

N/A

Base Curb Weight

2,659 - 2,732 kg

Front Tire Size

LT317.5/80SR17 LT315/70SR17

Rear Tire Size

LT317.5/80SR17 LT315/70SR17

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Included

2024 Ford F-150

Key Specifications for 2024 Ford F-150

Review & Compare:
2024 Ford F-150 Trims

Photos

AutoTrader Review

Reviews and News

Recall Information

2024 Ford F-150 for Sale

Similar Vehicles

2024 Ford F-150

Key Specifications for 2024 Ford F-150

Review & Compare: 2024 Ford F-150 Trims

Photos

AutoTrader Review

Reviews and News

Recall Information

2024 Ford F-150 for Sale

Similar Vehicles

Review & Compare:
2024 Ford F-150 Trims
