2024 Ford F-350 in Canada - Canadian Prices, Trims, Specs, Photos, Recalls

1 of 71

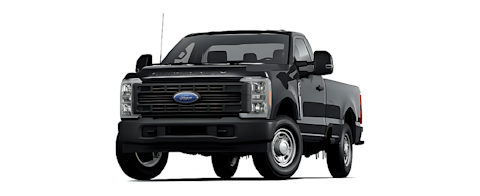

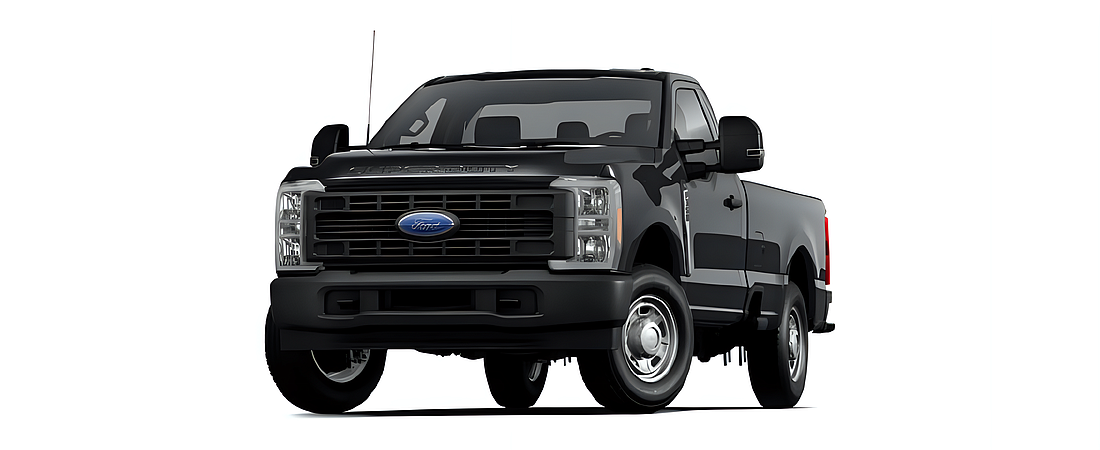

XL 2WD Reg Cab 8' Box

$61,479 MSRP

Flex Fuel, Gasoline, Diesel

Rear-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,577 - 11,340 kg

Wt Distributing Hitch - Max Tongue Wt.

658 - 1,134 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,532 - 10,433 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,633 - 2,608 kg

Maximum Trailering Capacity

6,577 - 11,340 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,607 mm

Length, Overall

5,888 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

1,999 mm

Min Ground Clearance

N/A

Base Curb Weight

2,655 - 2,981 kg

Front Tire Size

LT245/75SR17 LT275/65SR18

Rear Tire Size

LT245/75SR17 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

2 of 71

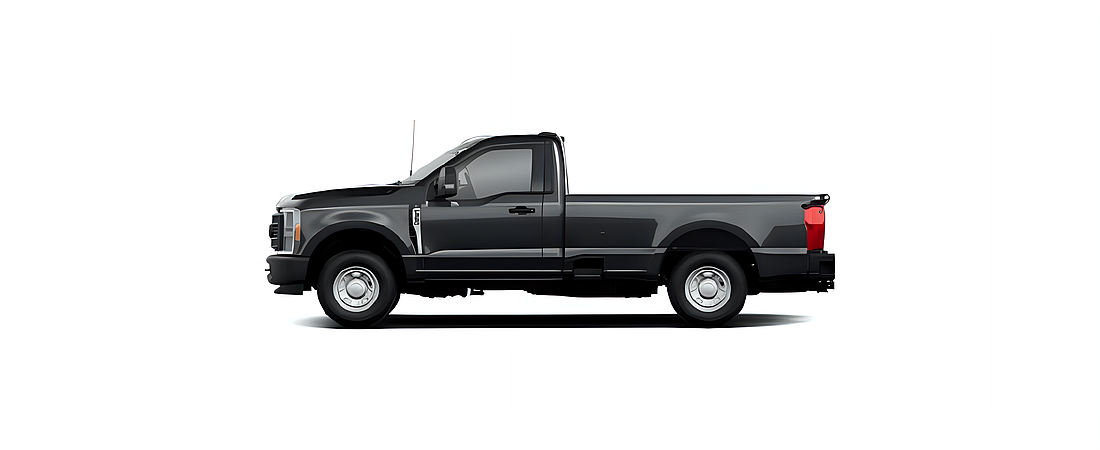

XL 2WD Reg Cab 8' Box

$62,225 MSRP

Flex Fuel, Gasoline, Diesel

Rear-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,255 - 11,249 kg

Wt Distributing Hitch - Max Tongue Wt.

826 - 1,125 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,391 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,098 - 3,969 kg

Maximum Trailering Capacity

8,255 - 11,249 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,607 mm

Length, Overall

5,888 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

1,984 mm

Min Ground Clearance

N/A

Base Curb Weight

2,815 - 3,179 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

3 of 71

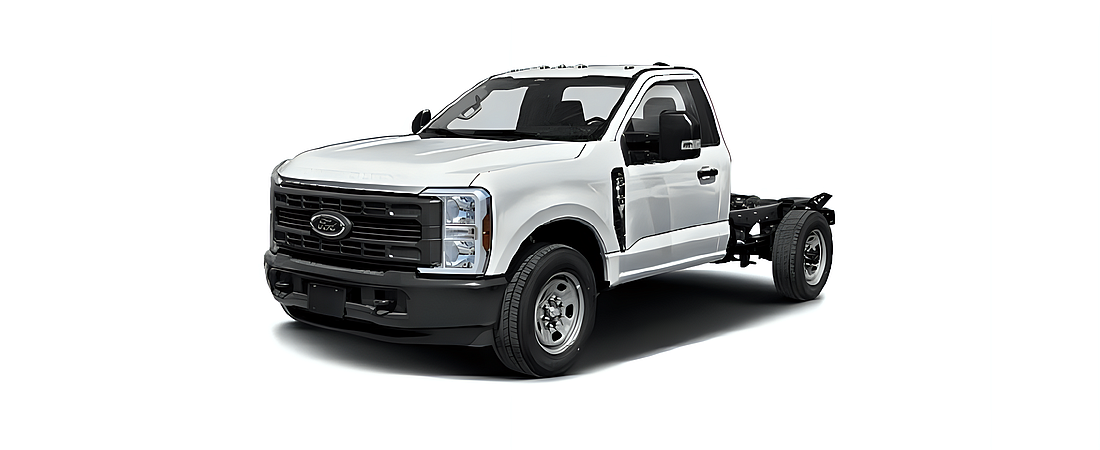

XL 2WD Reg Cab 145" WB 60" CA

$62,319 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,208 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,302 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,009 mm

Min Ground Clearance

N/A

Base Curb Weight

2,492 kg

Front Tire Size

LT275/65SR18

Rear Tire Size

LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

4 of 71

XL 2WD Reg Cab 145" WB 60" CA

$63,569 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,163 - 12,020 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,291 - 3,005 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,014 mm

Min Ground Clearance

N/A

Base Curb Weight

2,673 - 2,980 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

5 of 71

XL 2WD Reg Cab 169" WB 84" CA

$64,169 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,072 - 11,929 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,268 - 2,982 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,012 mm

Min Ground Clearance

N/A

Base Curb Weight

2,708 - 3,026 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

6 of 71

XLT 2WD Reg Cab 145" WB 60" CA

$64,299 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,208 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,302 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,009 mm

Min Ground Clearance

N/A

Base Curb Weight

2,492 - 2,495 kg

Front Tire Size

LT275/65SR18

Rear Tire Size

LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

7 of 71

XL 2WD SuperCab 6.75' Box

$64,579 MSRP

Flex Fuel, Gasoline, Diesel

Rear-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,577 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

658 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,486 - 9,707 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,622 - 2,427 kg

Maximum Trailering Capacity

6,577 - 9,072 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,759 mm

Length, Overall

6,050 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,009 mm

Min Ground Clearance

N/A

Base Curb Weight

2,738 - 3,054 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

8 of 71

XL 4WD Reg Cab 8' Box

$64,979 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,350 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

635 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,260 - 12,428 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,565 - 3,107 kg

Maximum Trailering Capacity

6,350 - 9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,607 mm

Length, Overall

5,888 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,062 mm

Min Ground Clearance

N/A

Base Curb Weight

2,821 - 3,146 kg

Front Tire Size

LT275/70SR18 LT285/70SR17 LT245/75SR17

Rear Tire Size

LT275/70SR18 LT285/70SR17 LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

9 of 71

XL 2WD SuperCab 8' Box

$65,179 MSRP

Flex Fuel, Gasoline, Diesel

Rear-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,532 - 10,433 kg

Wt Distributing Hitch - Max Tongue Wt.

653 - 1,043 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,396 - 9,707 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,599 - 2,427 kg

Maximum Trailering Capacity

6,532 - 10,433 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,166 mm

Length, Overall

6,462 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,002 mm

Min Ground Clearance

N/A

Base Curb Weight

2,789 - 3,112 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

10 of 71

XLT 2WD Reg Cab 145" WB 60" CA

$65,549 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,163 - 12,020 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,291 - 3,005 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,014 mm

Min Ground Clearance

N/A

Base Curb Weight

2,673 - 2,980 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

11 of 71

XL 4WD Reg Cab 8' Box

$65,725 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,301 - 11,249 kg

Wt Distributing Hitch - Max Tongue Wt.

830 - 1,125 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,165 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,041 - 3,969 kg

Maximum Trailering Capacity

8,301 - 11,249 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,607 mm

Length, Overall

5,888 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

2,047 mm

Min Ground Clearance

N/A

Base Curb Weight

3,015 - 3,373 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

12 of 71

XL 4WD Reg Cab 145" WB 60" CA

$65,819 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,981 - 10,297 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,245 - 2,574 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,080 mm

Min Ground Clearance

N/A

Base Curb Weight

2,697 - 3,003 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

13 of 71

XL 2WD SuperCab 168" WB 60" CA

$66,019 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,026 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,257 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,014 mm

Min Ground Clearance

N/A

Base Curb Weight

2,686 kg

Front Tire Size

LT275/65SR18

Rear Tire Size

LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

14 of 71

XLT 2WD Reg Cab 169" WB 84" CA

$66,149 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,072 - 11,929 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,268 - 2,982 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,012 mm

Min Ground Clearance

N/A

Base Curb Weight

2,708 - 3,026 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

15 of 71

XL 2WD Crew Cab 6.75' Box

$66,529 MSRP

Flex Fuel, Gasoline, Diesel

Rear-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,486 - 10,433 kg

Wt Distributing Hitch - Max Tongue Wt.

649 - 1,043 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,396 - 9,435 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,599 - 2,359 kg

Maximum Trailering Capacity

6,486 - 10,433 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,064 mm

Length, Overall

6,350 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,009 mm

Min Ground Clearance

N/A

Base Curb Weight

2,808 - 3,133 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

16 of 71

XL 4WD Reg Cab 145" WB 60" CA

$67,069 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,026 - 11,839 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,257 - 2,960 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,088 mm

Min Ground Clearance

N/A

Base Curb Weight

2,827 - 3,157 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

17 of 71

XL 2WD Crew Cab 8' Box

$67,129 MSRP

Flex Fuel, Gasoline, Diesel

Rear-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,396 - 10,433 kg

Wt Distributing Hitch - Max Tongue Wt.

640 - 1,043 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,305 - 9,344 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,576 - 2,336 kg

Maximum Trailering Capacity

6,396 - 10,433 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

181.7 - 183.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,470 mm

Length, Overall

6,761 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,002 mm

Min Ground Clearance

N/A

Base Curb Weight

2,911 - 3,241 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

18 of 71

XL 2WD SuperCab 168" WB 60" CA

$67,269 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,981 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,245 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,022 mm

Min Ground Clearance

N/A

Base Curb Weight

2,859 - 2,901 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

19 of 71

XL 4WD Reg Cab 169" WB 84" CA

$67,669 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,890 - 11,748 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,223 - 2,937 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,083 mm

Min Ground Clearance

N/A

Base Curb Weight

2,890 - 3,207 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

20 of 71

XLT 4WD Reg Cab 145" WB 60" CA

$67,799 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,981 - 10,297 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,245 - 2,574 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,080 mm

Min Ground Clearance

N/A

Base Curb Weight

2,697 - 3,003 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

21 of 71

XL 2WD Crew Cab 179" WB 60" CA

$67,979 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,936 - 9,571 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,234 - 2,393 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,017 mm

Min Ground Clearance

N/A

Base Curb Weight

2,749 - 3,114 kg

Front Tire Size

LT275/65SR18

Rear Tire Size

LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

22 of 71

XLT 2WD SuperCab 168" WB 60" CA

$67,999 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,026 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,257 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,014 mm

Min Ground Clearance

N/A

Base Curb Weight

2,686 - 2,689 kg

Front Tire Size

LT275/65SR18

Rear Tire Size

LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

23 of 71

XL 4WD SuperCab 6.75' Box

$68,079 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,350 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

635 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,260 - 12,111 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,565 - 3,028 kg

Maximum Trailering Capacity

6,350 - 9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,759 mm

Length, Overall

6,050 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,065 mm

Min Ground Clearance

N/A

Base Curb Weight

2,932 - 3,244 kg

Front Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Rear Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

24 of 71

XL 4WD SuperCab 8' Box

$68,679 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,305 - 11,340 kg

Wt Distributing Hitch - Max Tongue Wt.

630 - 1,134 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,214 - 12,111 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,554 - 3,028 kg

Maximum Trailering Capacity

6,305 - 11,340 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,166 mm

Length, Overall

6,462 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,062 mm

Min Ground Clearance

N/A

Base Curb Weight

2,981 - 3,301 kg

Front Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Rear Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

25 of 71

XLT 4WD Reg Cab 145" WB 60" CA

$69,049 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,026 - 11,839 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,257 - 2,960 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,088 mm

Min Ground Clearance

N/A

Base Curb Weight

2,827 - 3,157 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

26 of 71

XL 2WD Crew Cab 179" WB 60" CA

$69,229 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,936 - 11,793 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,234 - 2,948 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,024 mm

Min Ground Clearance

N/A

Base Curb Weight

2,899 - 3,211 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

27 of 71

XLT 2WD SuperCab 168" WB 60" CA

$69,249 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,981 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,245 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,022 mm

Min Ground Clearance

N/A

Base Curb Weight

2,859 - 2,901 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

28 of 71

XL 4WD SuperCab 8' Box

$69,425 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,074 - 12,111 kg

Wt Distributing Hitch - Max Tongue Wt.

807 - 1,211 kg

Fifth Wheel Hitch - Max Trailer Wt.

7,983 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,996 - 3,969 kg

Maximum Trailering Capacity

8,074 - 12,111 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,166 mm

Length, Overall

6,462 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

2,055 mm

Min Ground Clearance

N/A

Base Curb Weight

3,211 - 3,569 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

29 of 71

XL 4WD SuperCab 168" WB 60" CA

$69,519 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,800 - 9,117 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,200 - 2,279 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,083 mm

Min Ground Clearance

N/A

Base Curb Weight

2,882 - 3,229 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

30 of 71

XLT 4WD Reg Cab 169" WB 84" CA

$69,649 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,890 - 11,748 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,223 - 2,937 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,083 mm

Min Ground Clearance

N/A

Base Curb Weight

2,890 - 3,207 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

31 of 71

XLT 2WD Crew Cab 179" WB 60" CA

$69,799 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,936 - 9,571 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,234 - 2,393 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,017 mm

Min Ground Clearance

N/A

Base Curb Weight

2,749 - 3,114 kg

Front Tire Size

LT275/65SR18

Rear Tire Size

LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

32 of 71

XL 4WD Crew Cab 6.75' Box

$70,029 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,305 - 10,886 kg

Wt Distributing Hitch - Max Tongue Wt.

630 - 1,089 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,169 - 11,748 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,542 - 2,937 kg

Maximum Trailering Capacity

6,305 - 10,886 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,064 mm

Length, Overall

6,350 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,065 mm

Min Ground Clearance

N/A

Base Curb Weight

2,997 - 3,323 kg

Front Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Rear Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

33 of 71

XL 4WD Crew Cab 8' Box

$70,629 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,214 - 11,340 kg

Wt Distributing Hitch - Max Tongue Wt.

621 - 1,134 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,123 - 11,612 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,531 - 2,903 kg

Maximum Trailering Capacity

6,214 - 11,340 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

181.7 - 183.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,470 mm

Length, Overall

6,761 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,060 mm

Min Ground Clearance

N/A

Base Curb Weight

3,049 - 3,382 kg

Front Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Rear Tire Size

LT275/65SR20 LT275/70SR18 LT285/70SR17 LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

34 of 71

XL 4WD SuperCab 168" WB 60" CA

$70,769 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,800 - 11,657 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,200 - 2,914 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,088 mm

Min Ground Clearance

N/A

Base Curb Weight

3,035 - 3,358 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

35 of 71

XLT 2WD Crew Cab 179" WB 60" CA

$71,049 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,936 - 11,793 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,234 - 2,948 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,024 mm

Min Ground Clearance

N/A

Base Curb Weight

2,899 - 3,211 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

36 of 71

XL 4WD Crew Cab 8' Box

$71,375 MSRP

Flex Fuel, Gasoline, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445 6.8 L/415

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

430 hp @ 5500 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 405 hp @ 5000 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 445 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,983 - 12,701 kg

Wt Distributing Hitch - Max Tongue Wt.

798 - 1,270 kg

Fifth Wheel Hitch - Max Trailer Wt.

7,893 - 15,785 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,973 - 3,946 kg

Maximum Trailering Capacity

7,983 - 12,701 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift-G 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Flex Fuel Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

181.7 - 183.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,470 mm

Length, Overall

6,761 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

2,057 mm

Min Ground Clearance

N/A

Base Curb Weight

3,314 - 3,686 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

37 of 71

XLT 4WD Reg Cab 8' Box

$71,395 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,350 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

635 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,260 - 12,428 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,565 - 3,107 kg

Maximum Trailering Capacity

6,350 - 9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,607 mm

Length, Overall

5,888 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,062 mm

Min Ground Clearance

N/A

Base Curb Weight

2,944 - 3,268 kg

Front Tire Size

LT245/75SR17 LT275/70SR18 LT275/65SR18

Rear Tire Size

LT245/75SR17 LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

38 of 71

XL 4WD Crew Cab 179" WB 60" CA

$71,479 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,754 - 8,890 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,189 - 2,223 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,085 mm

Min Ground Clearance

N/A

Base Curb Weight

2,938 - 3,259 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

39 of 71

XLT 4WD SuperCab 168" WB 60" CA

$71,499 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,800 - 9,117 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,200 - 2,279 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,083 mm

Min Ground Clearance

N/A

Base Curb Weight

2,882 - 3,229 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

40 of 71

XLT 4WD Reg Cab 8' Box

$72,145 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,301 - 11,249 kg

Wt Distributing Hitch - Max Tongue Wt.

830 - 1,125 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,165 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,041 - 3,969 kg

Maximum Trailering Capacity

8,301 - 11,249 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,607 mm

Length, Overall

5,888 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

2,047 mm

Min Ground Clearance

N/A

Base Curb Weight

3,059 - 3,416 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

41 of 71

XL 4WD Crew Cab 179" WB 60" CA

$72,729 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,754 - 11,612 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,189 - 2,903 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,090 mm

Min Ground Clearance

N/A

Base Curb Weight

3,081 - 3,392 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

42 of 71

XLT 4WD SuperCab 168" WB 60" CA

$72,749 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,800 - 11,657 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,200 - 2,914 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,088 mm

Min Ground Clearance

N/A

Base Curb Weight

3,035 - 3,358 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

43 of 71

XLT 4WD Crew Cab 179" WB 60" CA

$73,299 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,754 - 8,890 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,189 - 2,223 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,085 mm

Min Ground Clearance

N/A

Base Curb Weight

2,938 - 3,259 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

44 of 71

XLT 4WD SuperCab 6.75' Box

$74,495 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,350 - 9,072 kg

Wt Distributing Hitch - Max Tongue Wt.

635 - 907 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,260 - 12,111 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,565 - 3,028 kg

Maximum Trailering Capacity

6,350 - 9,072 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

109.8 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Optional

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,759 mm

Length, Overall

6,050 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,065 mm

Min Ground Clearance

N/A

Base Curb Weight

3,054 - 3,367 kg

Front Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT275/65SR18

Rear Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

45 of 71

XLT 4WD Crew Cab 179" WB 60" CA

$74,549 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,754 - 11,612 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,189 - 2,903 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,090 mm

Min Ground Clearance

N/A

Base Curb Weight

3,081 - 3,392 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

46 of 71

XLT 4WD SuperCab 8' Box

$75,095 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,305 - 11,340 kg

Wt Distributing Hitch - Max Tongue Wt.

630 - 1,134 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,214 - 12,111 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,554 - 3,028 kg

Maximum Trailering Capacity

6,305 - 11,340 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Optional

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,166 mm

Length, Overall

6,462 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,062 mm

Min Ground Clearance

N/A

Base Curb Weight

3,103 - 3,423 kg

Front Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT275/65SR18

Rear Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

47 of 71

XLT 4WD SuperCab 8' Box

$75,845 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,074 - 12,111 kg

Wt Distributing Hitch - Max Tongue Wt.

807 - 1,211 kg

Fifth Wheel Hitch - Max Trailer Wt.

7,983 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,996 - 3,969 kg

Maximum Trailering Capacity

8,074 - 12,111 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Optional

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,166 mm

Length, Overall

6,462 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

2,055 mm

Min Ground Clearance

N/A

Base Curb Weight

3,255 - 3,569 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

48 of 71

XLT 4WD Crew Cab 6.75' Box

$76,295 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,305 - 10,886 kg

Wt Distributing Hitch - Max Tongue Wt.

630 - 1,089 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,169 - 11,748 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,542 - 2,937 kg

Maximum Trailering Capacity

6,305 - 10,886 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

128.7 - 130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Optional

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,064 mm

Length, Overall

6,350 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,065 - 2,118 mm

Min Ground Clearance

N/A

Base Curb Weight

3,120 - 3,445 kg

Front Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT285/75SR18 LT275/65SR18

Rear Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT285/75SR18 LT275/65SR18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

49 of 71

XLT 4WD Crew Cab 8' Box

$76,895 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,214 - 11,340 kg

Wt Distributing Hitch - Max Tongue Wt.

621 - 1,134 kg

Fifth Wheel Hitch - Max Trailer Wt.

6,123 - 11,612 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,531 - 2,903 kg

Maximum Trailering Capacity

6,214 - 11,340 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

181.7 - 183.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Optional

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Included

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Optional

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,470 mm

Length, Overall

6,761 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,060 mm

Min Ground Clearance

N/A

Base Curb Weight

3,172 - 3,506 kg

Front Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT275/65SR18

Rear Tire Size

LT245/75SR17 LT275/65SR20 LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Included

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

50 of 71

XL 2WD SuperCab 8' Box

$77,400 MSRP

Diesel, Gasoline

Rear-Wheel Drive

430 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Intercooled Turbo Diesel V-8

Displacement

7.3 L/445 6.7 L/406

Fuel System

Sequential MPI Diesel Direct Injection

Horsepower

430 hp @ 5500 rpm 500 hp @ 2600 rpm 475 hp @ 2600 rpm

Torque

1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 1050 ft-lb @ 1600 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 - 12,111 kg

Wt Distributing Hitch - Max Tongue Wt.

839 - 1,211 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,255 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,064 - 3,969 kg

Maximum Trailering Capacity

8,391 - 12,111 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Diesel Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

130.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,166 mm

Length, Overall

6,462 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

1,976 mm

Min Ground Clearance

N/A

Base Curb Weight

3,373 - 3,416 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

51 of 71

XLT 4WD Crew Cab 8' Box

$77,645 MSRP

Gasoline, Flex Fuel, Diesel

Four-Wheel Drive

405 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 6.8 L/415 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

405 hp @ 5000 rpm 475 hp @ 2600 rpm 500 hp @ 2600 rpm 430 hp @ 5500 rpm

Torque

1050 ft-lb @ 1600 rpm 1200 ft-lb @ 1600 rpm 445 ft-lb @ 4000 rpm 485 ft-lb @ 4000 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,983 - 12,701 kg

Wt Distributing Hitch - Max Tongue Wt.

798 - 1,270 kg

Fifth Wheel Hitch - Max Trailer Wt.

7,893 - 15,785 kg

Fifth Wheel Hitch - Max Tongue Wt.

1,973 - 3,946 kg

Maximum Trailering Capacity

7,983 - 12,701 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road

Fuel

Gasoline Flex Fuel Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

181.7 - 183.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Optional

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,470 mm

Length, Overall

6,761 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

2,057 mm

Min Ground Clearance

N/A

Base Curb Weight

3,357 - 3,686 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

52 of 71

XL 2WD Crew Cab 8' Box

$79,350 MSRP

Diesel, Gasoline

Rear-Wheel Drive

430 - 500 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8 Intercooled Turbo Diesel V-8

Displacement

7.3 L/445 6.7 L/406

Fuel System

Sequential MPI Diesel Direct Injection

Horsepower

430 hp @ 5500 rpm 500 hp @ 2600 rpm 475 hp @ 2600 rpm

Torque

1200 ft-lb @ 1600 rpm 485 ft-lb @ 4000 rpm 1050 ft-lb @ 1600 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,255 - 12,701 kg

Wt Distributing Hitch - Max Tongue Wt.

826 - 1,270 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,165 - 15,876 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,041 - 3,969 kg

Maximum Trailering Capacity

8,255 - 12,701 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and trail

Fuel

Diesel Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

183.0 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Included

Lane Departure Warning

Not Available

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Included

Rear Parking Aid

Included

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,470 mm

Length, Overall

6,761 mm

Width, Max w/o mirrors

2,438 mm

Height, Overall

1,979 mm

Min Ground Clearance

N/A

Base Curb Weight

3,457 - 3,501 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Included

Canopy

Not Available

Pickup Bed Tonneau Cover

Included

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

53 of 71

LARIAT 4WD SuperCab 168" WB 60" CA

$87,129 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

6,123 kg

Wt Distributing Hitch - Max Tongue Wt.

612 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,800 - 9,117 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,200 - 2,279 kg

Maximum Trailering Capacity

6,123 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Included

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,083 mm

Min Ground Clearance

N/A

Base Curb Weight

2,882 - 3,229 kg

Front Tire Size

LT275/70SR18 LT275/65SR18

Rear Tire Size

LT275/70SR18 LT275/65SR18

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Not Available

54 of 71

LARIAT 4WD SuperCab 168" WB 60" CA

$88,379 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

7,938 kg

Wt Distributing Hitch - Max Tongue Wt.

794 kg

Fifth Wheel Hitch - Max Trailer Wt.

8,800 - 11,657 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,200 - 2,914 kg

Maximum Trailering Capacity

7,938 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Included

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,088 mm

Min Ground Clearance

N/A

Base Curb Weight

3,035 - 3,358 kg

Front Tire Size

LT245/75SR17

Rear Tire Size

LT245/75SR17

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Not Available

55 of 71

LARIAT 4WD Crew Cab 179" WB 60" CA

$88,929 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

2024 Ford F-350

Key Specifications for 2024 Ford F-350

Review & Compare:
2024 Ford F-350 Trims

2024 Ford F-350

Key Specifications for 2024 Ford F-350

Review & Compare: 2024 Ford F-350 Trims

Review & Compare:
2024 Ford F-350 Trims
