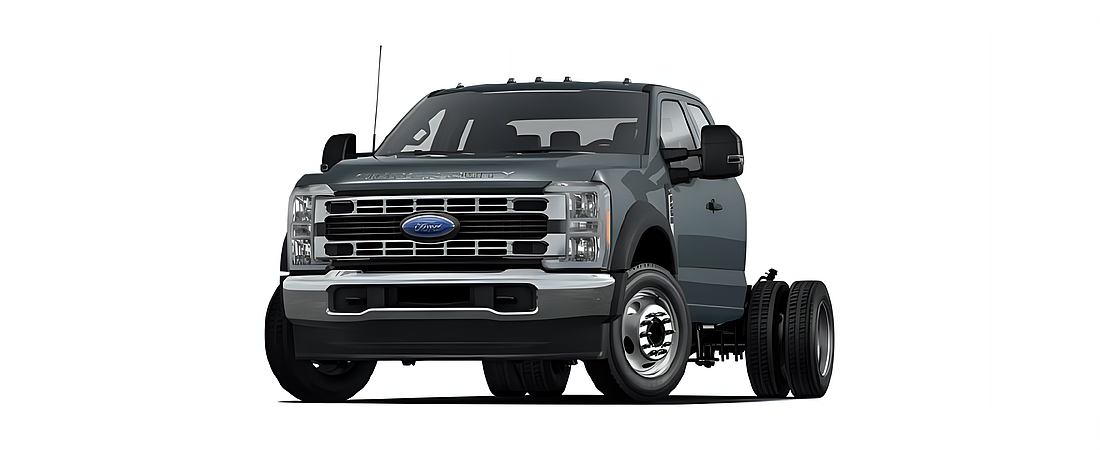

2024 Ford F-550 in Canada - Canadian Prices, Trims, Specs, Photos, Recalls

1 of 36

XL 2WD Reg Cab 145" WB 60" CA

$66,979 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,934 - 15,513 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,483 - 3,878 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 - 6,932 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

2,996 - 3,343 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

2 of 36

XL 2WD Reg Cab 169" WB 84" CA

$67,579 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,843 - 15,422 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,461 - 3,856 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 - 7,295 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,004 - 3,325 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

3 of 36

XL 2WD Reg Cab 193" WB 108" CA

$68,179 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,707 - 15,241 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,427 - 3,810 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,902 mm

Length, Overall

7,082 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,071 - 3,396 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

4 of 36

XL 2WD Reg Cab 205" WB 120" CA

$68,779 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,662 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,415 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,207 mm

Length, Overall

7,384 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,134 - 3,456 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

5 of 36

XLT 2WD Reg Cab 145" WB 60" CA

$68,949 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,934 - 15,513 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,483 - 3,878 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 - 6,932 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

2,996 - 3,343 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

6 of 36

XLT 2WD Reg Cab 169" WB 84" CA

$69,549 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,843 - 15,422 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,461 - 3,856 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 - 7,295 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,004 - 3,325 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

7 of 36

XLT 2WD Reg Cab 193" WB 108" CA

$70,149 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,707 - 15,241 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,427 - 3,810 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,902 mm

Length, Overall

7,082 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,071 - 3,396 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

8 of 36

XL 2WD SuperCab 168" WB 60" CA

$70,679 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,798 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,449 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,101 mm

Min Ground Clearance

N/A

Base Curb Weight

3,173 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

9 of 36

XLT 2WD Reg Cab 205" WB 120" CA

$70,749 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,662 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,415 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,207 mm

Length, Overall

7,384 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,134 - 3,456 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

10 of 36

XL 4WD Reg Cab 145" WB 60" CA

$71,479 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,843 - 15,422 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,461 - 3,856 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 - 6,932 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,111 - 3,439 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

11 of 36

XL 4WD Reg Cab 169" WB 84" CA

$72,079 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,662 - 15,286 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,415 - 3,822 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 - 7,295 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,173 - 3,486 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

12 of 36

XL 2WD Crew Cab 179" WB 60" CA

$72,629 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,707 - 15,286 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,427 - 3,822 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,103 mm

Min Ground Clearance

N/A

Base Curb Weight

3,205 - 3,523 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

13 of 36

XLT 2WD SuperCab 168" WB 60" CA

$72,649 MSRP

Gasoline

Rear-Wheel Drive

335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Regular Unleaded V-8

Displacement

7.3 L/445

Fuel System

Sequential MPI

Horsepower

335 hp @ 3750 rpm

Torque

468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,798 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,449 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,101 mm

Min Ground Clearance

N/A

Base Curb Weight

3,173 - 3,177 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

14 of 36

XL 4WD Reg Cab 193" WB 108" CA

$72,679 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,525 - 15,105 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,381 - 3,776 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,902 mm

Length, Overall

7,082 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,259 - 3,595 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

15 of 36

XL 2WD Crew Cab 203" WB 84" CA

$73,229 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,616 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,404 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,156 mm

Length, Overall

7,346 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,256 - 3,631 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

16 of 36

XL 4WD Reg Cab 205" WB 120" CA

$73,279 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,480 - 15,059 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,370 - 3,765 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

2 - 3

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,207 mm

Length, Overall

7,384 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,274 - 3,607 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

17 of 36

XLT 4WD Reg Cab 145" WB 60" CA

$73,449 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,843 - 15,422 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,461 - 3,856 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

3,683 mm

Length, Overall

5,860 - 6,932 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,111 - 3,439 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

18 of 36

XLT 4WD Reg Cab 169" WB 84" CA

$74,049 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,662 - 15,286 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,415 - 3,822 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,293 mm

Length, Overall

6,472 - 7,295 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,173 - 3,486 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

19 of 36

XLT 2WD Crew Cab 179" WB 60" CA

$74,449 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,707 - 15,286 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,427 - 3,822 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,103 mm

Min Ground Clearance

N/A

Base Curb Weight

3,205 - 3,523 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

20 of 36

XLT 4WD Reg Cab 193" WB 108" CA

$74,649 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,525 - 15,105 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,381 - 3,776 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,902 mm

Length, Overall

7,082 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,259 - 3,595 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

21 of 36

XLT 2WD Crew Cab 203" WB 84" CA

$75,049 MSRP

Gasoline, Diesel

Rear-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,616 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,404 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,156 mm

Length, Overall

7,346 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,256 - 3,631 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

22 of 36

XL 4WD SuperCab 168" WB 60" CA

$75,179 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,616 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,404 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,310 - 3,629 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

23 of 36

XLT 4WD Reg Cab 205" WB 120" CA

$75,249 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,480 - 15,059 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,370 - 3,765 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Not Available

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

N/A

Rear Leg Room

N/A

Rear Shoulder Room

N/A

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,207 mm

Length, Overall

7,384 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,093 mm

Min Ground Clearance

N/A

Base Curb Weight

3,274 - 3,607 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

24 of 36

XL 4WD SuperCab 192" WB 84" CA

$75,779 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,525 - 15,059 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,381 - 3,765 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,877 mm

Length, Overall

7,046 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,354 - 3,689 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

25 of 36

XL 4WD Crew Cab 179" WB 60" CA

$77,129 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,571 - 15,150 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,393 - 3,787 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,103 mm

Min Ground Clearance

N/A

Base Curb Weight

3,356 - 3,695 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

26 of 36

XLT 4WD SuperCab 168" WB 60" CA

$77,149 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,616 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,404 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,310 - 3,629 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

27 of 36

XL 4WD Crew Cab 203" WB 84" CA

$77,729 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,435 - 15,014 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,359 - 3,753 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,156 mm

Length, Overall

7,346 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,392 - 3,721 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

28 of 36

XLT 4WD SuperCab 192" WB 84" CA

$77,749 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,525 - 15,059 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,381 - 3,765 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,877 mm

Length, Overall

7,046 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,354 - 3,689 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

29 of 36

XLT 4WD Crew Cab 179" WB 60" CA

$78,949 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,571 - 15,150 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,393 - 3,787 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,103 mm

Min Ground Clearance

N/A

Base Curb Weight

3,356 - 3,695 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

30 of 36

XLT 4WD Crew Cab 203" WB 84" CA

$79,549 MSRP

Gasoline, Diesel

Four-Wheel Drive

330 - 335 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8 Regular Unleaded V-8

Displacement

6.7 L/406 7.3 L/445

Fuel System

Diesel Direct Injection Sequential MPI

Horsepower

330 hp @ 2200 rpm 335 hp @ 3750 rpm

Torque

950 ft-lb @ 1800 rpm 468 ft-lb @ 3750 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,435 - 15,014 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,359 - 3,753 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Gasoline Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,156 mm

Length, Overall

7,346 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,392 - 3,721 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

31 of 36

XL 2WD SuperCab 192" WB 84" CA

$82,254 MSRP

Diesel

Rear-Wheel Drive

330 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8

Displacement

6.7 L/406

Fuel System

Diesel Direct Injection

Horsepower

330 hp @ 2200 rpm

Torque

950 ft-lb @ 1800 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,662 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,415 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Optional

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Not Available

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Not Available

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Not Available

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Not Available

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Not Available

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,877 mm

Length, Overall

7,046 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,541 - 3,579 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

32 of 36

XLT 2WD SuperCab 192" WB 84" CA

$84,224 MSRP

Diesel

Rear-Wheel Drive

330 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8

Displacement

6.7 L/406

Fuel System

Diesel Direct Injection

Horsepower

330 hp @ 2200 rpm

Torque

950 ft-lb @ 1800 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

9,662 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,415 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Rear-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and trail

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Not Available

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Not Available

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Not Available

Multi-Zone Air Conditioning

Not Available

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Not Available

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Not Available

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Not Available

Seat Memory

Not Available

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Not Available

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Not Available

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

5 - 6

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,877 mm

Length, Overall

7,046 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,541 - 3,579 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Not Available

Engine Immobilizer

Included

Wheels-Locks

Not Available

33 of 36

LARIAT 4WD SuperCab 168" WB 60" CA

$102,359 MSRP

Diesel

Four-Wheel Drive

330 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8

Displacement

6.7 L/406

Fuel System

Diesel Direct Injection

Horsepower

330 hp @ 2200 rpm

Torque

950 ft-lb @ 1800 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

11,385 - 15,195 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,846 - 3,799 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,267 mm

Length, Overall

6,434 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,629 - 3,663 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Not Available

34 of 36

LARIAT 4WD SuperCab 192" WB 84" CA

$102,959 MSRP

Diesel

Four-Wheel Drive

330 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8

Displacement

6.7 L/406

Fuel System

Diesel Direct Injection

Horsepower

330 hp @ 2200 rpm

Torque

950 ft-lb @ 1800 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

11,249 - 15,059 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,812 - 3,765 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Not Available

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,024 mm

Rear Leg Room

851 mm

Rear Shoulder Room

1,671 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,877 mm

Length, Overall

7,046 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,096 mm

Min Ground Clearance

N/A

Base Curb Weight

3,689 - 3,711 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Not Available

35 of 36

LARIAT 4WD Crew Cab 179" WB 60" CA

$104,159 MSRP

Diesel

Four-Wheel Drive

330 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8

Displacement

6.7 L/406

Fuel System

Diesel Direct Injection

Horsepower

330 hp @ 2200 rpm

Torque

950 ft-lb @ 1800 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

11,294 - 15,150 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,824 - 3,787 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

4,547 mm

Length, Overall

6,736 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,103 mm

Min Ground Clearance

N/A

Base Curb Weight

3,695 - 3,713 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Not Available

36 of 36

LARIAT 4WD Crew Cab 203" WB 84" CA

$104,759 MSRP

Diesel

Four-Wheel Drive

330 horsepower

Show full trim specifications

Hide full trim specifications

Trim Specifications

Mechanical

Engine

Intercooled Turbo Diesel V-8

Displacement

6.7 L/406

Fuel System

Diesel Direct Injection

Horsepower

330 hp @ 2200 rpm

Torque

950 ft-lb @ 1800 rpm

Dead Weight Hitch - Max Trailer Wt.

2,268 kg

Dead Weight Hitch - Max Tongue Wt.

227 kg

Wt Distributing Hitch - Max Trailer Wt.

8,391 kg

Wt Distributing Hitch - Max Tongue Wt.

839 kg

Fifth Wheel Hitch - Max Trailer Wt.

11,204 - 15,014 kg

Fifth Wheel Hitch - Max Tongue Wt.

2,801 - 3,753 kg

Maximum Trailering Capacity

8,391 kg

Steering

Power Steering

Drivetrain

Four-Wheel Drive

Transmission

TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road

Fuel

Diesel

Fuel Consumption: City

N/A

Fuel Consumption: Highway

N/A

Fuel Consumption: City/HWY Combined

N/A

Fuel Capacity

100.0 - 151.4 L

Safety

Driver Air Bag

Included

Passenger Air Bag

Included

Front Side Air Bag

Included

Rear Side Air Bag

Not Available

Front Head Air Bag

Included

Rear Head Air Bag

Included

Knee Air Bag

Not Available

Seatbelt Air Bag

Not Available

Brake

4 Wheel Disc

Brake ABS System

Included

Traction Control

Included

Stability Control

Not Available

Rollover Protection Bars

Not Available

Child Safety Locks

Included

Emergency Trunk Release

Not Available

Driver Restriction Features

Not Available

Driver Assistance

Back-Up Camera

Included

360 Camera

Not Available

Brake Assist

Included

Blind Spot Monitor

Not Available

Lane Departure Warning

Included

Lane Keeping Assist

Not Available

Cross-Traffic Alert

Not Available

Rear Parking Aid

Not Available

Automatic Parking

Not Available

Tire Pressure Monitor

Not Available

Cruise Control

Included

Adaptive Cruise Control

Not Available

Heads-Up Display

Not Available

Lighting

Daytime Running Lights

Not Available

Automatic Headlights

Included

HID headlights

Not Available

Headlights-Auto-Leveling

Not Available

Night Vision

Not Available

Integrated Turn Signal Mirrors

Included

Auto-Dimming Rearview Mirror

Included

Infotainment

AM/FM Stereo

Included

HD Radio

Included

Satellite Radio

Included

CD Player

Not Available

MP3 Player

Included

Auxiliary Audio Input

Included

Hard Disk Drive Media Storage

Not Available

Rear Seat Audio Controls

Not Available

Steering Wheel-Audio Controls

Included

Navigation System

Included

Connectivity

Smart Device Integration

Included

Apple CarPlay

Included

Android Auto

Included

WiFi Hotspot

Included

Bluetooth Connection

Included

Power Outlet

Not Available

Wireless Charging

Not Available

Comfort

Air Conditioning

Included

Climate Control

Included

Multi-Zone Air Conditioning

Included

Rear Air Conditioning

Not Available

Heated Front Seat(s)

Included

Heated Rear Seat(s)

Not Available

Cooled Front Seat(s)

Included

Cooled Rear Seat(s)

Not Available

Driver Adjustable Lumbar

Included

Passenger Adjustable Lumbar

Included

Seat-Massage

Not Available

Heated Steering Wheel

Not Available

Convenience

Power Windows

Included

Power Door Locks

Included

Keyless Entry

Included

Keyless Start

Not Available

Power Driver Seat

Included

Power Passenger Seat

Included

Seat Memory

Included

Power Mirror(s)

Included

Heated Mirrors

Included

Mirror Memory

Included

Power Folding Mirrors

Included

Power Liftgate

Not Available

Hands-Free Liftgate

Not Available

Remote Trunk Release

Not Available

Remote Engine Start

Included

Variable Speed Intermittent Wipers

Included

Rain Sensing Wipers

Not Available

Universal Garage Door Opener

Included

Running Boards/Side Steps

Included

Power Retractable Running Boards

Not Available

Interior

Passenger Capacity

Front Head Room

1,036 mm

Front Leg Room

1,115 mm

Front Shoulder Room

1,694 mm

Rear Head Room

1,026 mm

Rear Leg Room

1,107 mm

Rear Shoulder Room

1,674 mm

Trunk Volume

N/A

Front Reading Lamps

Not Available

Rear Reading Lamps

Not Available

Exterior

Wheelbase

5,156 mm

Length, Overall

7,346 mm

Width, Max w/o mirrors

2,032 mm

Height, Overall

2,098 mm

Min Ground Clearance

N/A

Base Curb Weight

3,721 - 3,759 kg

Front Tire Size

LT225/70SR19.5

Rear Tire Size

LT225/70SR19.5

Sun/Moon Roof

Not Available

Luggage Rack

Not Available

Stepside Pickup Box

Not Available

Bed Liner

Not Available

Canopy

Not Available

Pickup Bed Tonneau Cover

Not Available

Security

Security System

Included

Engine Immobilizer

Included

Wheels-Locks

Not Available

2024 Ford F-550

Key Specifications for 2024 Ford F-550

Review & Compare:
2024 Ford F-550 Trims

Photos

AutoTrader Review

Reviews and News

Recall Information

2024 Ford F-550 for Sale

Similar Vehicles

2024 Ford F-550

Key Specifications for 2024 Ford F-550

Review & Compare: 2024 Ford F-550 Trims

Photos

AutoTrader Review

Reviews and News

Recall Information

2024 Ford F-550 for Sale

Similar Vehicles

Review & Compare:
2024 Ford F-550 Trims
