Compare trims
Deluxe

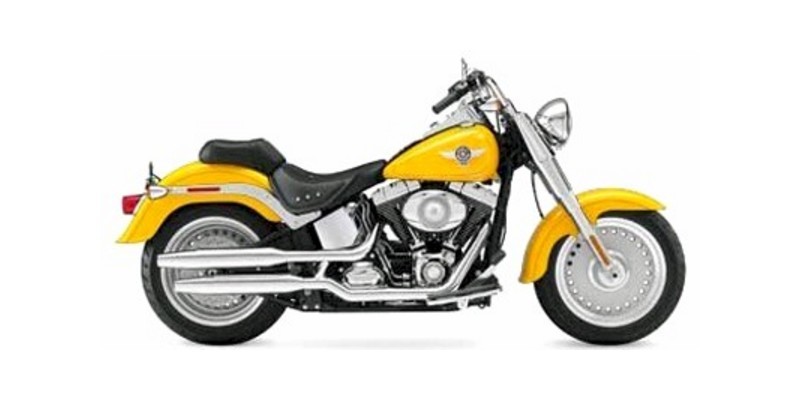

Fat Boy

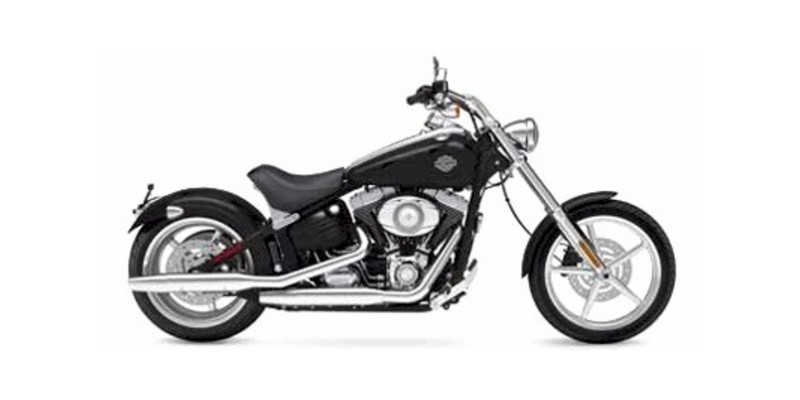

Rocker C

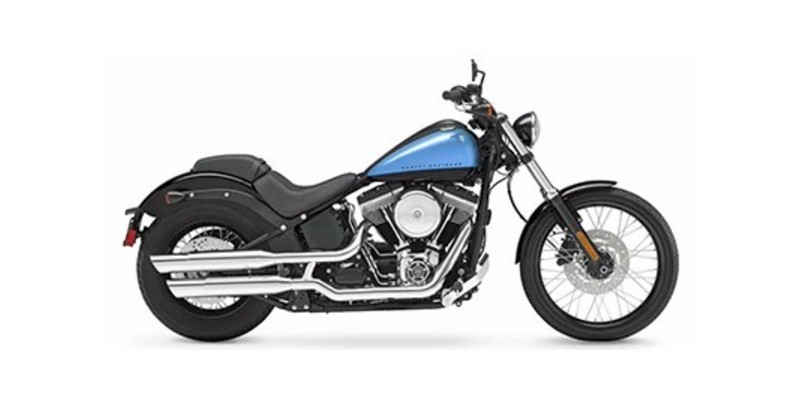

Blackline

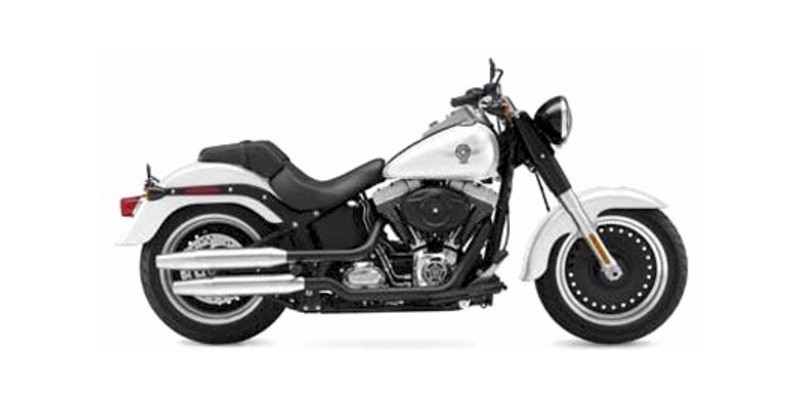

Fat Boy Lo

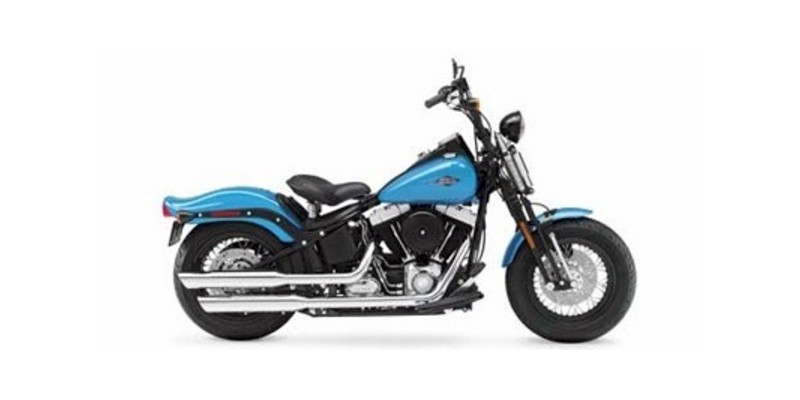

Cross Bones

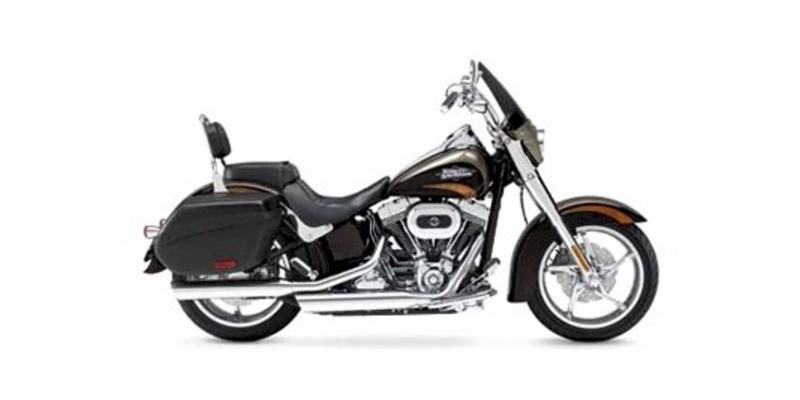

CVO Softail Convertible

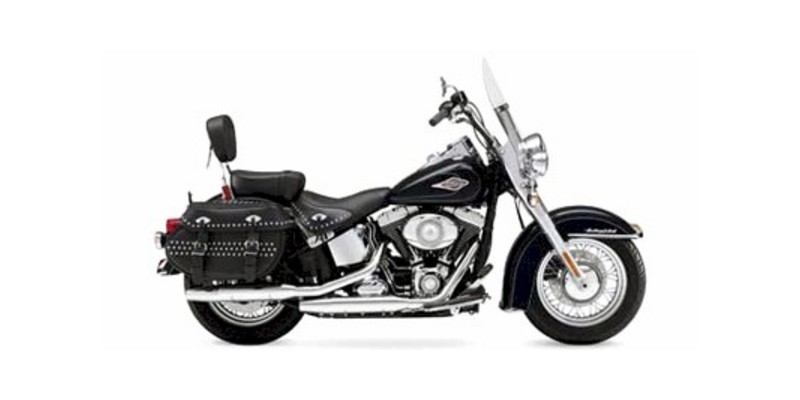

Heritage Softail Classic
MSRP
-
-
-
-
-
-
-
-
Type
Street
Street
Street
Street
Street
Street
Street
Street
Front Braking System
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
-
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
-
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
Rear Braking System
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
-
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
-
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
Fuel Capacity
18.90 l (5 gal)
18.90 l (5 gal)
18.50 l (4.90 gal)
18.90 l (5 gal)
18.90 l (5 gal)
18.90 l (5 gal)
18.90 l (5 gal)
18.90 l (5 gal)
Cooling
Air
Air
Air
Air
Air
Air
Air
Air
Ground Clearance
4.80 in (121.90 mm)
5.10 in (129.50 mm)
5.10 in (129.50 mm)
5.30 in (133 mm)
4.80 in (121.90 mm)
4.90 in (124.50 mm)
4.30 in (109.20 mm)
5.10 in (129.50 mm)
Length
94.70 in (2,405.40 mm)
94.30 in (2,395.20 mm)
95 in (2,413 mm)
93 in (2,362 mm)
94.30 in (2,395.20 mm)
90.50 in (2,298.70 mm)
94.90 in (2,410.50 mm)
94.50 in (2,400.30 mm)
Seat Height
24.50 in (622.30 mm)
25.40 in (645.20 mm)
25.20 in (640.10 mm)
24 in (610 mm)
24.30 in (617.20 mm)
26.60 in (675.60 mm)
24.40 in (619.80 mm)
25.50 in (647.70 mm)
Wheelbase
64.50 in (1,638.30 mm)
64.50 in (1,638.30 mm)
69.20 in (1,757.70 mm)
66.50 in (1,689 mm)
64.50 in (1,638.30 mm)
64.50 in (1,638.30 mm)
64.20 in (1,630.70 mm)
64.50 in (1,638.30 mm)
Gear Ratios
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
9.03 / 6.26 / 4.65 / 3.76 / 3.21 / 2.71
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
9.31 / 6.45 / 4.79 / 3.88 / 3.31 / 2.79
Primary Drive
Chain , Belt
Chain , Belt
Chain , Belt
Chain , Belt
Chain , Belt
Chain , Belt
Chain , Belt
Chain , Belt
Bore
3.75 in (95.30 mm)
3.75 in (95.30 mm)
3.75 in (95.30 mm)
3.75 in (95.30 mm)
3.75 in (95.30 mm)
3.75 in (95.30 mm)
4 in (101.60 mm)
3.75 in (95.30 mm)
Carburetor
Fuel Injected
Fuel Injected
Fuel Injected
Fuel Injected
Fuel Injected
Fuel Injected
Fuel Injected
Fuel Injected
Compression Ratio
9.2:1
9.2:1
9.2:1
9.2:1
9.2:1
9.2:1
9.15:1
9.2:1
Cylinders
2
2
2
2
2
2
2
2
Displacement
1,584 cc
1,584 cc
1,584 cc
1,584 cc
1,584 cc
1,584 cc
1,802.60 cc
1,584 cc
Engine Brand Name
Twin Cam 96B
Twin Cam 96B
Twin Cam 96B
Twin Cam 96B
Twin Cam 96B
Twin Cam 96B
Twin Cam 110
Twin Cam 96B
Engine Type
V Twin
V Twin
V Twin
V Twin
V Twin
V Twin
V Twin
V Twin
Stroke
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
Engine Torque
127 Nm
127 Nm
125 Nm
121 Nm
127 Nm
127 Nm
149.10 Nm
125 Nm
Engine Torque (rpm)
3,000 rpm
3,000 rpm
3,000 rpm
3,250 rpm
3,000 rpm
3,000 rpm
3,000 rpm
3,000 rpm
Transmission
6 speed / Manual
6 speed / Manual
6 speed / Manual
6 speed / Manual
6 speed / Manual
6 speed / Manual
6 speed / Manual
6 speed / Manual
Weight As Shipped
695 lbs (315.30 kg)
694 lbs (314.80 kg)
686.30 lbs (311.30 kg)
638.50 lbs (290 kg)
700 lbs (317.50 kg)
700 lbs (317.50 kg)
754 lbs (342 kg)
730 lbs (331.10 kg)
Weight In Running Order
726.30 lbs (329.40 kg)
725.30 lbs (329 kg)
716.92 lbs (325.20 kg)
682.50 lbs (310 kg)
731.30 lbs (331.70 kg)
731.30 lbs (331.70 kg)
781 lbs (354.30 kg)
761.30 lbs (345.30 kg)
Tires Front Specification
Dunlop Dunlop MT90-16 72H
Dunlop Dunlop 140/75 R17 67V
Dunlop Dunlop 90/90-19 52H
Dunlop Dunlop MH90-21 54H
Dunlop Dunlop 140/75 R17 67V
Dunlop Dunlop MT135/90B16 72H
Dunlop Dunlop 130/70 R18 63V
Dunlop Dunlop MT90B16 72H
Tires Rear Specification
Dunlop Dunlop MU85 R16 77H
Dunlop Dunlop 200/55 R17 78V
Dunlop Dunlop 240/40 R18 79V
Dunlop Dunlop MU85 B16 77H
Dunlop Dunlop 200/55 R17 78V
Dunlop Dunlop 200/55 R17 78V
Dunlop Dunlop 200/50 R18 76V
Dunlop Dunlop 150/80 R16 71H
Front Wheel
-
-
-
Aluminum 21 in x 2.15 in
-
-
-
-
Rear Wheel
-
-
-
Aluminum 16 in x 3 in
-
-
-
-
