Compare trims

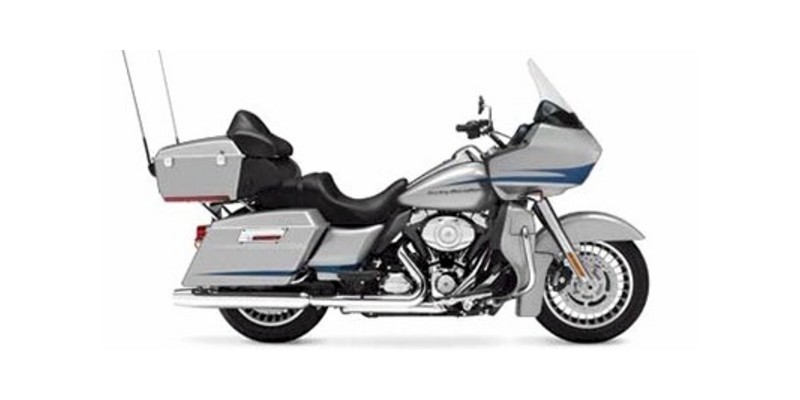

Ultra

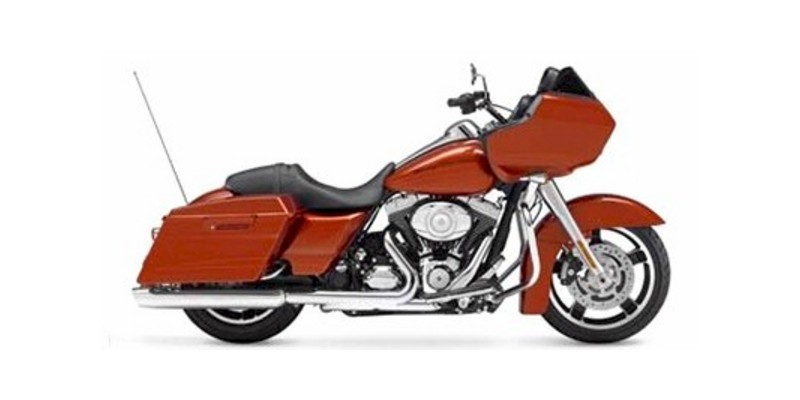

Custom

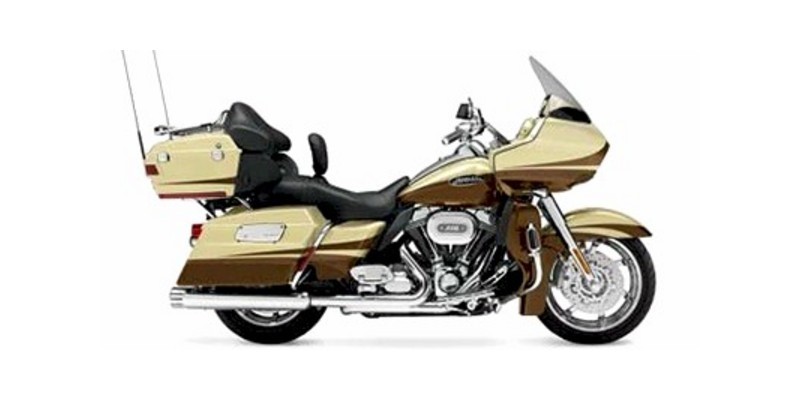

CVO Ultra
MSRP
-
-
-
Type
Touring
Touring
Touring
Front Braking System
Dual Hydraulic Disc / 292.10 mm
Dual Hydraulic Disc / 292.10 mm
Dual Hydraulic Disc / 292.10 mm
Rear Braking System
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
Hydraulic Disc / 292.10 mm
Fuel Capacity
22.70 l (6 gal)
22.70 l (6 gal)
22.70 l (6 gal)
Cooling
Air
Air
Air
Ground Clearance
5.10 in (129.50 mm)
5.10 in (129.50 mm)
5.10 in (129.50 mm)
Length
98.70 in (2,507 mm)
95 in (2,413 mm)
98.80 in (2,509.50 mm)
Seat Height
27.30 in (693.40 mm)
26.10 in (662.90 mm)
27.50 in (693.40 mm)
Wheelbase
63.50 in (1,612.90 mm)
63.50 in (1,612.90 mm)
63.50 in (1,612.90 mm)
Gear Ratios
9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88
9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88
9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88
Primary Drive
Chain , Belt
Chain , Belt
Chain , Belt
Bore
3.88 in (98.60 mm)
3.75 in (95.30 mm)
4 in (101.60 mm)
Carburetor
Fuel Injected
Fuel Injected
Fuel Injected
Compression Ratio
9.6:1
9.2:1
9.15:1
Cylinders
2
2
2
Displacement
1,687.90 cc
1,584 cc
1,802.60 cc
Engine Brand Name
Twin Cam 103
Twin Cam 96
Twin Cam 110
Engine Type
V Twin
V Twin
V Twin
Stroke
4.38 in (111.30 mm)
4.38 in (111.30 mm)
4.38 in (111.30 mm)
Engine Torque
138.30 Nm
125.60 Nm
155.90 Nm
Engine Torque (rpm)
3,500 rpm
3,500 rpm
4,000 rpm
Transmission
6 speed / Manual
6 speed / Manual
6 speed / Manual
Weight As Shipped
850 lbs (385.60 kg)
772 lbs (350.20 kg)
905 lbs (410.50 kg)
Weight In Running Order
888 lbs (402.80 kg)
817 lbs (370.60 kg)
943 lbs (427.70 kg)
Tires Front Specification
Dunlop Dunlop 130/80 R17 65H
Dunlop Dunlop 130/70 R18 63H
Dunlop Dunlop 130/70 R18 63H
Tires Rear Specification
Dunlop Dunlop 180/65 R16 81H
Dunlop Dunlop 180/65 R16 81H
Dunlop Dunlop 180/55 R18 80H
