Compare trims

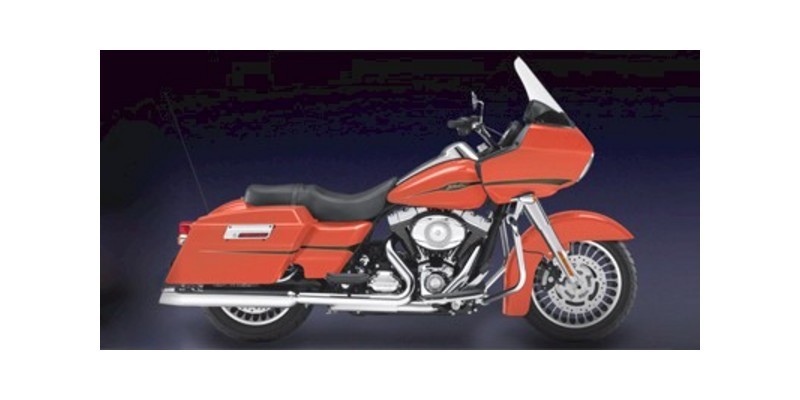

Base

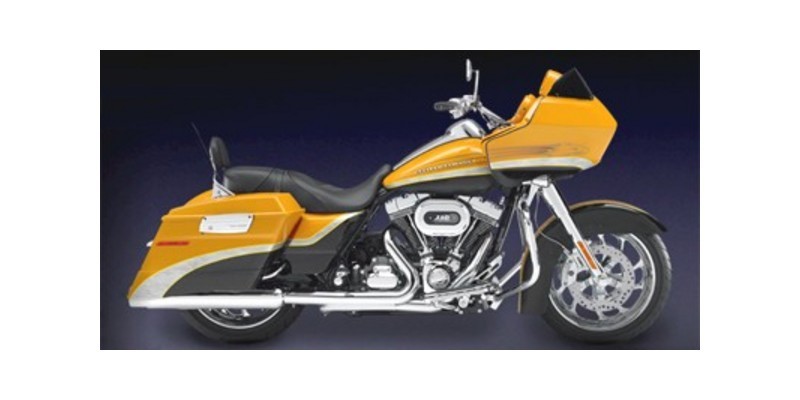

CVO Base
MSRP
-
-
Type
Touring
Touring
Front Braking System
Dual Disc / 292.10 mm
Dual Disc / 292.10 mm
Rear Braking System
Disc / 292.10 mm
Disc / 292.10 mm
Fuel Capacity
22.70 l (6 gal)
22.70 l (6 gal)
Cooling
Air
Air
Ground Clearance
5.10 in (129.50 mm)
5.10 in (129.50 mm)
Length
94.10 in (2,390.10 mm)
95.60 in (2,428.20 mm)
Seat Height
26.90 in (683.30 mm)
26.30 in (668 mm)
Wheelbase
63.50 in (1,612.90 mm)
63.50 in (1,612.90 mm)
Gear Ratios
9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88
9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88
Primary Drive
Chain , Belt
Chain , Belt
Bore
3.75 in (95.30 mm)
4 in (101.60 mm)
Carburetor
Fuel Injected
Fuel Injected
Compression Ratio
9.2:1
9.2:1
Cylinders
2
2
Displacement
1,584 cc
1,802.60 cc
Engine Brand Name
Twin Cam 96
Twin Cam 110
Engine Type
V Twin
V Twin
Stroke
4.38 in (111.30 mm)
4.38 in (111.30 mm)
Engine Torque
125.60 Nm
155.90 Nm
Engine Torque (rpm)
3,500 rpm
4,000 rpm
Transmission
6 speed / Manual
6 speed / Manual
Weight As Shipped
783 lbs (355.20 kg)
846.90 lbs (384.20 kg)
Weight In Running Order
820 lbs (372 kg)
880.60 lbs (399.40 kg)
Tires Front Specification
Dunlop Dunlop 130/80 R17 65H
Dunlop Dunlop D407 130/70 B18
Tires Rear Specification
Dunlop Dunlop 180/65 R16 81H
Dunlop Dunlop D407 180/55 B18
