2018 Harley-Davidson Electra Glide

MSRP Price From

$29,799

See inventory

Displacement

1,917.30 cc

Engine Type

V Twin

Cylinders

Engine Torque

169.50 Nm

Transmission

6 speed / Manual

Weight As Shipped

906 lbs (411 kg)

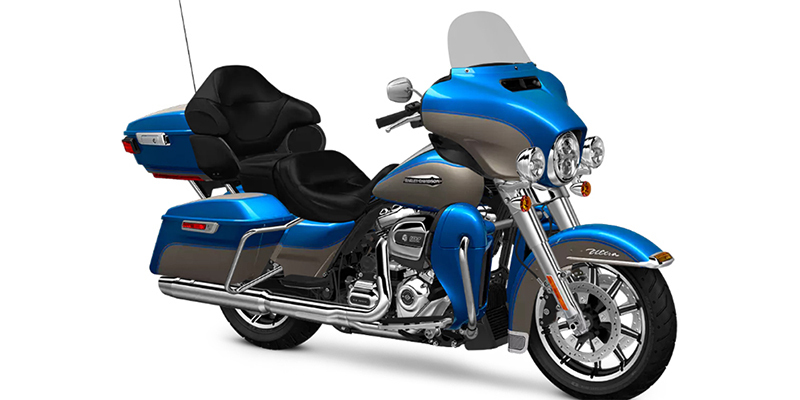

Ultra Classic

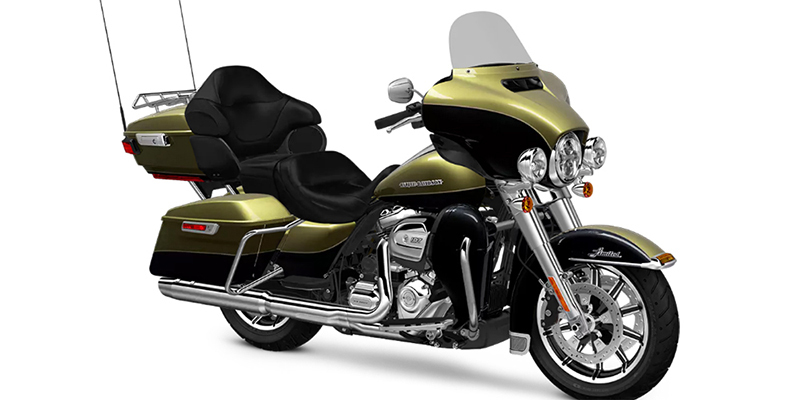

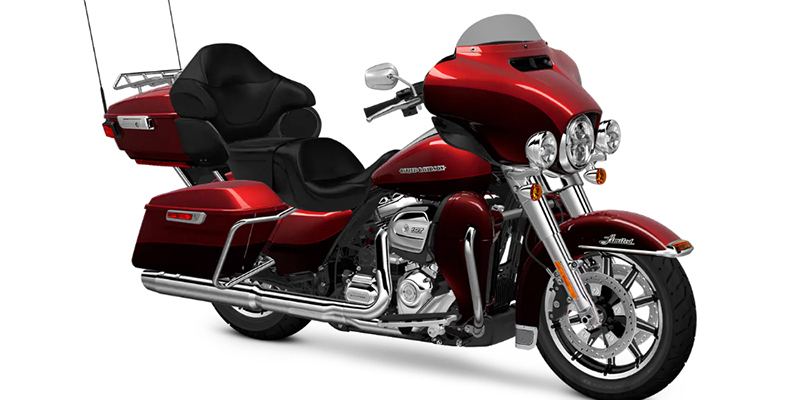

Ultra Limited

Ultra Limited Low

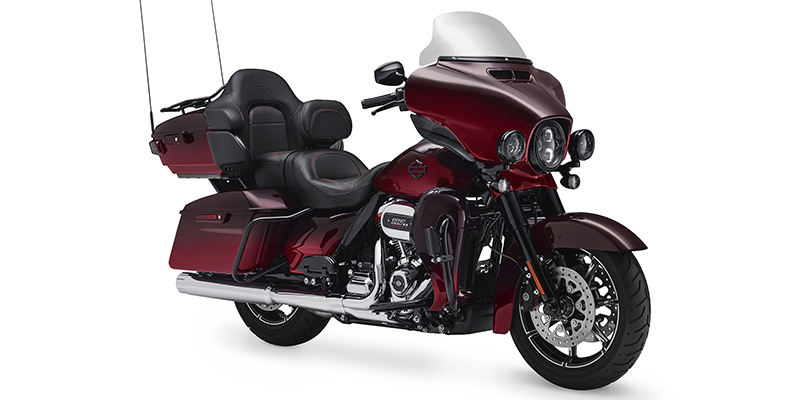

CVO Limited

Type

Capacities

            Fuel Capacity

                22.70 l (6 gal)

                22.70 l (6 gal)

                22.70 l (6 gal)

                22.70 l (6 gal)

            Luggage Capacity - Volume

                4.70 cu ft

                4.70 cu ft

                4.70 cu ft

                4.70 cu ft

Cooling System

Dimensions

            Ground Clearance

                5.30 in (135 mm)

                5.30 in (135 mm)

                4.60 in (115 mm)

                4.90 in (124.50 mm)

            Height

                56.70 in (1,440 mm)

                56.70 in (1,440 mm)

                54.70 in (1,390 mm)

                -

            Length

                102.40 in (2,601 mm)

                102.30 in (2,600 mm)

                102.40 in (2,601 mm)

                102.40 in (2,601 mm)

            Seat Height

                29.10 in (739.10 mm)

                29.10 in (739.10 mm)

                26.60 in (675.60 mm)

                29.90 in (759.50 mm)

            Wheelbase

                64 in (1,625 mm)

                64 in (1,625 mm)

                64 in (1,625 mm)

                64 in (1,625.60 mm)

            Width

                37.80 in (960 mm)

                37.80 in (960 mm)

                37.80 in (960 mm)

                37.80 in (960 mm)

Drivetrain

            Gear Ratios

                9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88

                9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88

                9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88

                9.59 / 6.65 / 4.94 / 4 / 3.41 / 2.88

            Primary Drive

                Chain , Belt

                Chain , Belt

                Chain , Belt

                Chain , Belt

Engine

            Bore

                3.94 in (100.10 mm)

                3.94 in (100.10 mm)

                3.94 in (100.10 mm)

                4.10 in (104.14 mm)

            Carburetor

                Fuel Injected

                Fuel Injected

                Fuel Injected

                Fuel Injected

            Compression Ratio

                10.0:1

                10.0:1

                10.0:1

                10.2:1

            Cylinders

                2

                2

                2

                2

            Displacement

                1,753.40 cc

                1,753.40 cc

                1,753.40 cc

                1,917.30 cc

            Engine Brand Name

                Milwaukee-Eight 107

                Twin-Cooled Milwaukee-Eight 107

                Twin-Cooled Milwaukee-Eight 107

                Twin-Cooled Milwaukee-Eight 117

            Engine Type

                V Twin

                V Twin

                V Twin

                V Twin

            Stroke

                4.38 in (111.30 mm)

                4.38 in (111.30 mm)

                4.38 in (111.30 mm)

                4.50 in (114.30 mm)

Performance

            Engine Torque

                150.50 Nm

                154.60 Nm

                154.60 Nm

                169.50 Nm

            Engine Torque (rpm)

                3,250 rpm

                3,250 rpm

                3,250 rpm

                3,500 rpm

            Fuel Economy: Combined City/Hwy

                5.20 L/100km

                5.50 L/100km

                5.50 L/100km

                6.60 L/100km

Transmission

            Transmission

                6 speed / Manual

                6 speed / Manual

                6 speed / Manual

                6 speed / Manual

Weights

            Weight As Shipped

                877 lbs (397.80 kg)

                877 lbs (397.80 kg)

                873 lbs (396 kg)

                906 lbs (411 kg)

            Weight In Running Order

                904 lbs (410 kg)

                910 lbs (413 kg)

                908 lbs (412 kg)

                944 lbs (428.20 kg)

Wheels & Tires

            Tires Front Specification

                Dunlop Dunlop Multi-Tread 130/80 R17 65H

                Dunlop Dunlop Multi-Tread 130/80 R17 65H

                Dunlop Dunlop Multi-Tread 130/80 R17 65H

                Dunlop Dunlop Multi-Tread 130/80 R17 65H

            Tires Rear  Specification

                Dunlop Dunlop Multi-Tread 180/65 R16 81H

                Dunlop Dunlop Multi-Tread 180/65 R16 81H

                Dunlop Dunlop Multi-Tread 180/65 R16 81H

                Dunlop Dunlop Multi-Tread 180/65 R16 81H
